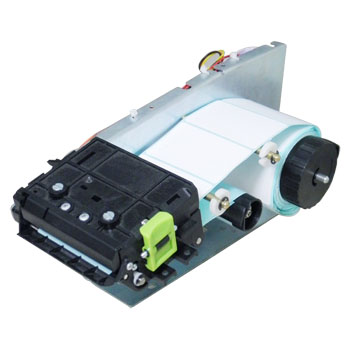

	Thermal Label Print Module   　Model: PT-1

　　Function & Features:
　　◆　Easier paper loading.
　　◆　Stable, reliable, high-life, excellent heat dissipation.
　　◆　High speed: can reach to 80mm/s( motor drive voltage is 24VDC).
　　◆　Resolution Ration(8dots/mm).
　　◆　Abrasion resistance: paper traveling distance long than 150km.
　　◆　Low noise: drive by non-magnetic pumping step motor, made up of high abrasion & excellent weather resistance engineering plastics gear.
　　◆　Scope: Suit for thermal label printer, Barcode label price scale, etc.
　　

　　Key Parameters:

ITEM	PARAMETERS
Printing method	Thermal dot line printing
Printing width	56mm
Resolution of level	8dots/mm
Printing dots number of per line	448dots
Resolution of paper traveling	0.0625mm per step
Dot pitch	0.125mm
Dot size	0.125mm×0.12mm
Driver	Stepping motor(24VDC pulse voltage)
Thermal head average resistance value	700Ω±4%
Printing speed(Max)	80mm/s(Motor voltage at 24VDC)
Paper width	60mm
Printing life	≥150km
Thermal head temperature detection	Via thermistor
Paper detection	Via a reflection type photo-interrupter
Platen unit's fixation	May be off the basic mechanism to achieve installing paper easy
Printer head working power voltage	VH：21.6-26.4VDC(Type: 24V)
Printer head working logic voltage	VDD：4.75-5.25VDC(Type: 5.0V)
Motor voltage	24±10%VDC
Paper cutting	Manual
Operating temperature	0℃-50℃
Operating humidity	10%-90%RH
Storage temperature	-20℃-60℃
Storage humidity	5%-95%RH
Operating machine noise	60dB(Max)
Net Weight	700g
Dimension(mm)	376×125.8×110(W×D×H)
Work Environment	Temperature: -10℃~40℃; Humidity: 20%~85% RH
Storage Environment	Temperature: -20℃~50℃; Humidity: 10%~95% RH
Scope	Suit for thermal label printer, Barcode label price scale, etc.
